Description
Description
- Connects a 6.35 mm input audio source

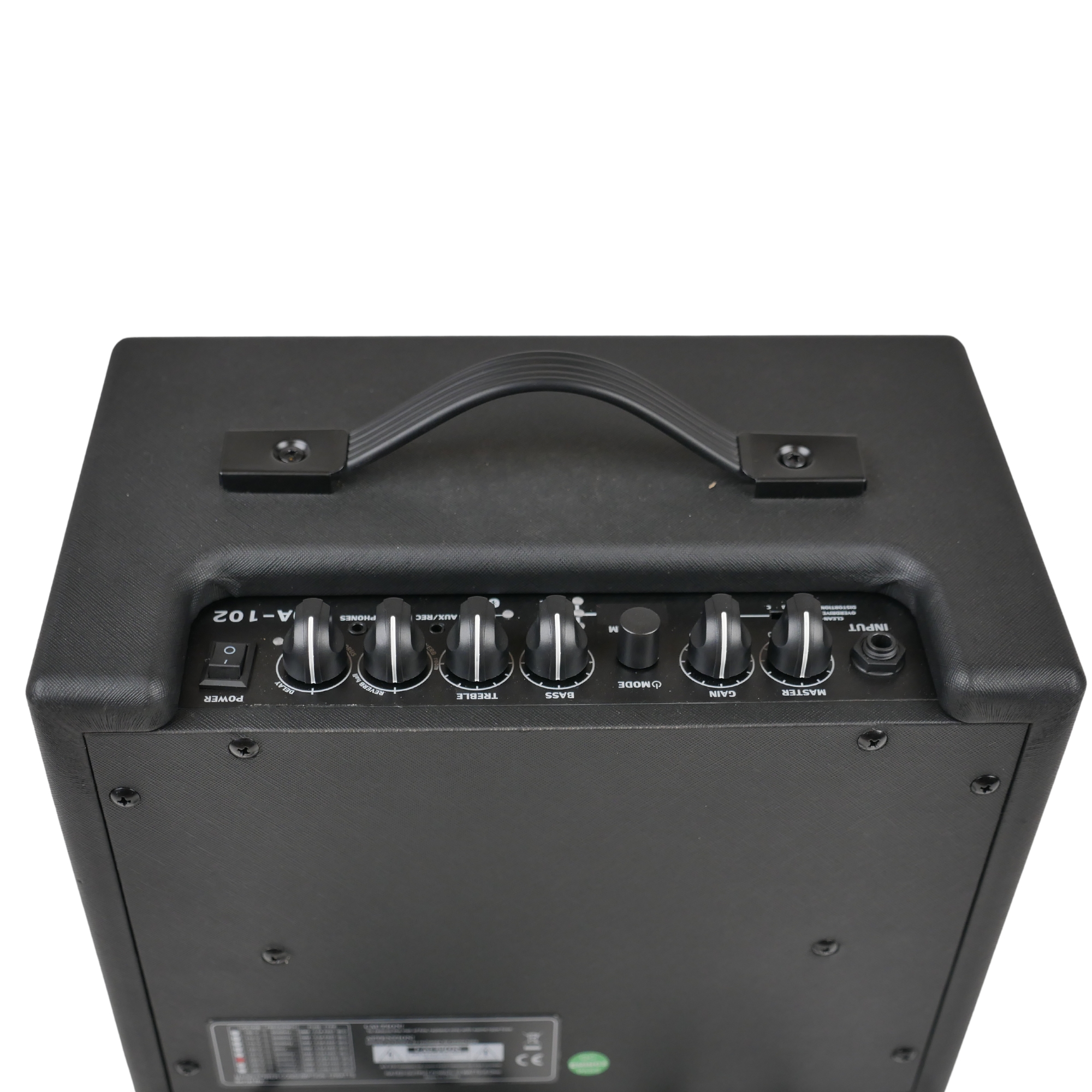

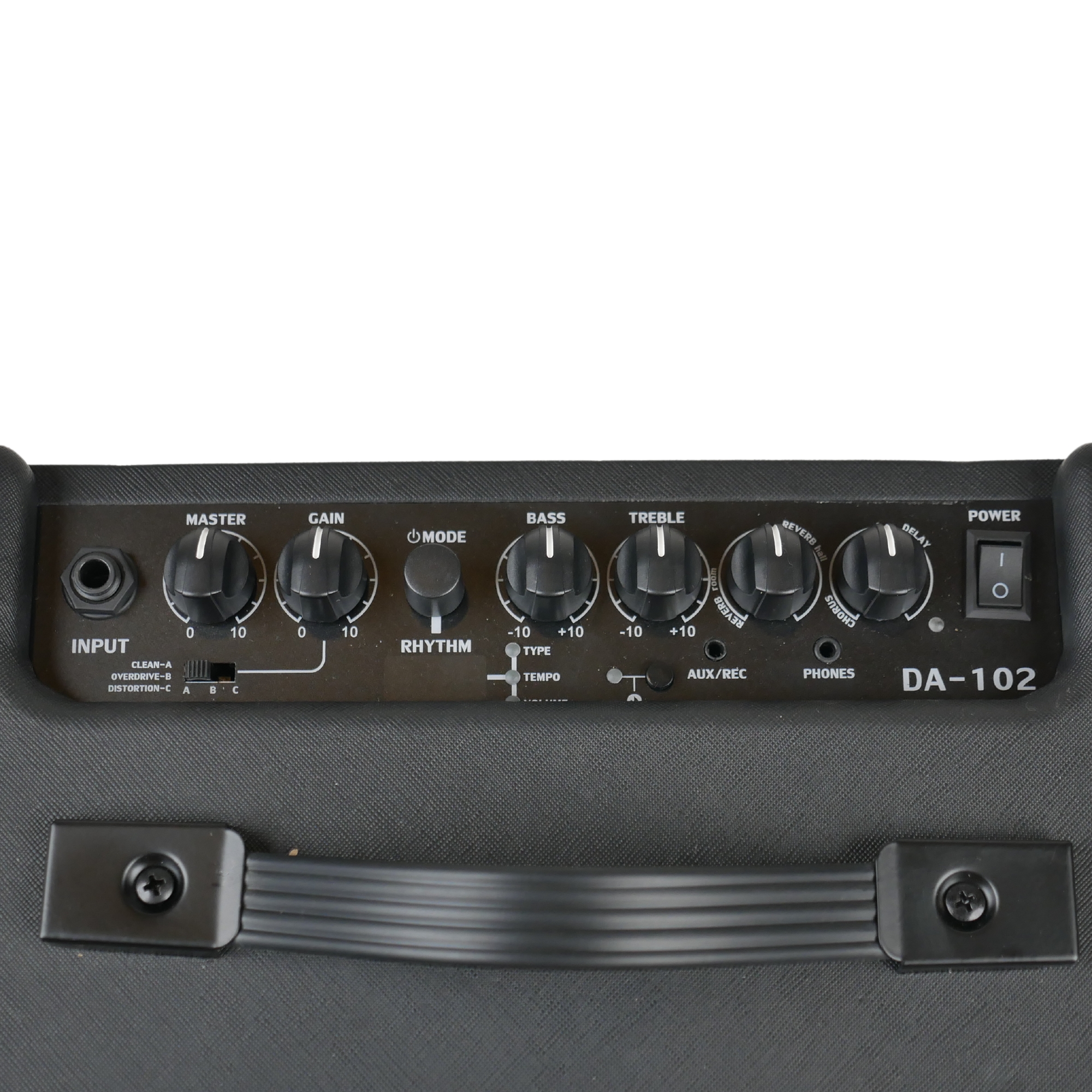

- MASTER: Adjusts the total volume - GAIN: Switches between A/B/C gain functions - A: Clean tone - B: Overdrive indication - C: Distortion indication - MODE: Press for 3 seconds to toggle the drum adjustment function - Type: Selects from 20 drum effects - Tempo: Sets drum speed (0-220) - Beat: Adjusts the measure - Volume: Drum volume (V0-V32) - BASS: Adjusts bass levels - TREBLE: Adjusts treble levels - REVERB: Adjusts reverberation for F-ROOM in the first channel - CHORUS: Adjusts the chorus effect in the first channel - SELECT: Switches channel mode - PHONES: Headphone jack - AUX/REC: Connects to audio output - Bluetooth Control: - Hold for 5 seconds to enable/disable Bluetooth - LED flashes when Bluetooth is enabled and paired - Hold button for 3 seconds to exit Bluetooth mode - DC Input: Uses a 9V3A power supply - BLUETOOTH: LED indicator for Bluetooth connection - RHYTHM: Percussion display - Version: V5.0
- Frequency Range: 2.402GHz - 2.480GHz - Connection Distance: Up to 10 meters (straight line) - Support System: Compatible with Android, iOS, and Windows - Transmission Power: Class 2, maximum 4 dBm - Speaker: 6.5-inch full-frequency speaker - Speaker Impedance: 4Ω - Sensitivity: 110 dB (+3dB) - Frequency Response: 20Hz - 20kHz - Distortion Degree: < 1% - Rated Power: 15W - Audio Signal-to-Noise Ratio: > 90 dB
